A Plastic Bag Making Machine is an industrial equipment system designed to automate the mass production of plastic bags from plastic film. This film is typically supplied as rolls of pre-extruded polymer or, in integrated systems, produced directly from plastic resin pellets. These machines transform flat sheets of plastic film into finished bags through a series of precise processes including sealing, cutting, and stacking. They are pivotal in meeting the global demand for various types of plastic bags, ranging from simple grocery T-shirt bags to sophisticated heavy-duty merchandise sacks.
The operation of a plastic bag making machine is a continuous, streamlined process. Here are the key stages:
This is the first stage. A large roll of plastic film, known as the parent roll, is mounted on an unwinding unit. The film is fed continuously and precisely into the machine. Tension control systems are crucial here to ensure the film flows smoothly without stretching or wrinkling. In an integrated plant, this step is preceded by an extruder which melts plastic pellets and blows them into a continuous tube of film.
The machine uses heat and pressure to fuse layers of plastic film together to form the bag's seams. The type of seal depends on the bag design:
Side Seal: The film is folded (or two sheets are used) and the two open sides are sealed, creating a pouch. Common for simple packaging bags.
Bottom Seal: For flat bags, the bottom of the bag is sealed. On a continuous tube of film, this process creates the seal that will become the bottom of the next bag.
End Seal: Sealing the top of the bag after it is filled is usually a separate process, but some machines can create the seal that will be the top of the finished bag.
Once the seals are made, the continuous tube or sheet of film is cut into individual bag sections. This is most commonly done by a hot knife, which simultaneously cuts and seals the edge to prevent fraying (a process called heat sealing and cutting). Ultrasonic cutting is another method that uses high-frequency vibrations to melt and cut the film.
For T-shirt bags or die-cut handle bags, this is a critical step. After the main body is formed, a punching unit uses a die to cut out the characteristic handles. The excess plastic (skeleton) is then trimmed away and often recycled back into the production process.
The finished bags are automatically counted and stacked into neat piles. The stacks are then conveyed out of the machine and are ready for packaging into cartons for shipment. Advanced machines can even automatically bundle and box the stacks.
Machines are categorized by the type of bag they produce:

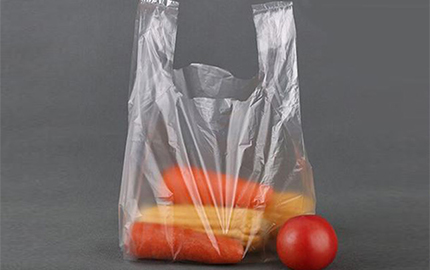

The most common type, producing grocery/shopping bags with loop handles. T-shirt Bag Making Machine is specially designed for heat sealing and cutting of vest bags.It can realize automatic punching of two production lines , increase output and save manpower.
Handle Bag Making Machine: A broader category that includes machines for making die-cut handle bags or more rigid "Euro-style" handle bags.
Side Seal Bag Making Machine: Produces simple bags sealed on three sides, widely used for packaging food, garments, and small parts.
Bottom Seal Bag Making Machine: Creates bags with a gusseted or flat bottom, ideal for standing up on shelves for merchandise.
Waste Bag Making Machine: Specialized for producing roll-based can liners and trash bags, often on a continuous roll without handles.
Vest Bag Making Machine: Another term for a T-shirt bag machine, named for the bag's resemblance to a sleeveless vest.
Plastic bags produced by these machines are ubiquitous across industries:
Retail: Grocery stores, shopping malls, boutiques.
Food Packaging: For fruits, vegetables, baked goods, and takeaway.
Hospitality: Liners for trash cans and laundry bags.
Industrial: Packaging for parts, chemicals, and waste.
Garment: Covering for clothing in stores and during shipping.
A plastic bag making machine is an industrial system that automates the high-volume production of plastic bags by processing plastic film through key stages including sealing, cutting, and stacking, with variants designed for specific bag types like T-shirt bags or grocery sacks.
Q1: What raw materials are used?
A: The primary material is polyethylene (PE), most commonly:
HDPE (High-Density Polyethylene): Used for thinner, crisper bags like grocery sacks.
LDPE (Low-Density Polyethylene): Used for softer, more flexible bags like bakery bags.
LLDPE (Linear Low-Density Polyethylene): Often used for its strength and stretch, common in trash bags.
Q2: How much does a plastic bag making machine cost?
A: The cost varies dramatically based on type, automation level, and output speed. Small, semi-automatic machines can start from $10,000 - $20,000, while large, fully automatic high-speed production lines can cost $100,000 to over $500,000.
Q3: How many bags can one machine produce?
A: Output is measured in cycles per minute (bags per minute). Speeds range from 30-50 bags per minute for simpler machines to over 200 bags per minute for high-speed T-shirt bag lines. This translates to tens of thousands to hundreds of thousands of bags per day.
