Stretch Film Making Machine

A Stretch Film making machine produces stretch films with adhesive properties, mainly using co-extruded LLDPE to form single- or double-layer films. The films feature high tensile strength, puncture resistance, and shrinkage memory, making them ideal for pallet packaging. They stabilize loads and protect against scattering, dust, and moisture during transport.

Superior Film Quality

Produces stretch films with high tensile strength, puncture resistance, and strong cling for secure load protection against dust, moisture, and damage.

User-Friendly Design

Streamlined structure ensures easy operation, quick setup, and low maintenance for reduced downtime and costs.

Wide Material Compatibility

Works with LLDPE and resin blends, offering flexible options to meet diverse packaging needs.

High Productivity

Delivers up to 100 kg/h with film widths to 1000 mm, ensuring efficient, versatile production for various applications.

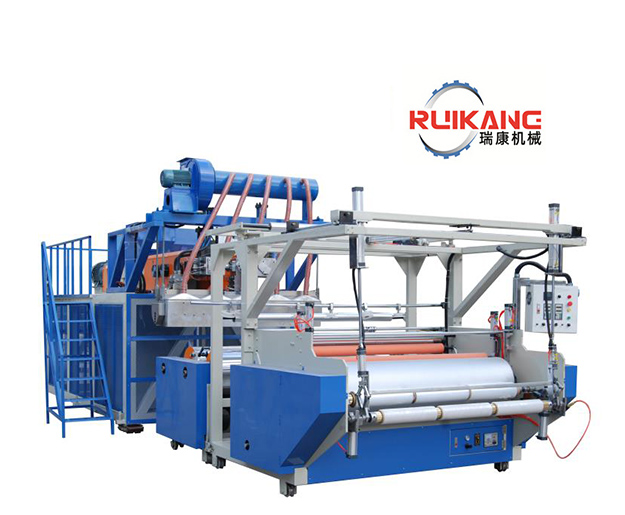

Model: RK-500-1000
RK-500-1000 Single layer Stretch Film Making Machine has high tensile strength and puncture resistance. It is widely use...
  • Max.Film width: 1000mm
  • Max.output: 100kg/h
  • Max.Screw diameter: 80mm
  • Screw L/D ratio: 32:1
Model: RK-1000/1500/2000
RK-1000/1500/2000 Multi Layer Cast Film Machine uses PLC and quality transmission system to ensure the stableprocess of ...
  • Max.Film width: 1000mm
  • Max.output: 100kg/h
  • Max.Screw diameter: 80mm
  • Screw L/D ratio: 32:1

What raw materials are compatible with your Stretch Film Making Machine?

A: The machine primarily uses LLDPE (Linear Low-Density Polyethylene) granules, which provide optimal stretchability (200-300% elongation). It can also blend:

  • LDPE (up to 20%) to improve transparency
  • HDPE (up to 10%) to enhance puncture resistance
  • Recycled LLDPE (up to 30% with proper processing) to reduce costsMaterial MFI (Melt Flow Index) should be 1-3 g/10min for best results. Download our raw material selection guide to avoid production issues.

What is the production capacity of your Stretch Film Making Machine?

A: Capacity varies by model and film thickness:

  • Small model (1-2 layers): 300-500 kg/day (film width 500-1000mm)
  • Medium model (3 layers): 800-1200 kg/day (film width 1000-1500mm)
  • Large industrial model (5 layers): 1500-3000 kg/day (film width 1500-2000mm)Thinner films (10-20μm) yield higher output than thick films (50+μm).

What types of stretch films can your Stretch Film Making Machine produce?

A: Our machines are designed to produce various stretch films, including hand stretch films (10-30μm thickness), machine stretch films (15-50μm), and heavy-duty stretch films (50-100μm) for industrial packaging. They can manufacture cast stretch films (most common) and blown stretch films (with special configuration). We also support anti-UV stretch films (for outdoor use) and colored stretch films (via masterbatch addition).

Buyer's Procurement Guide

Expert pre-sales consultations & tailored solutions. 24/7 post-sales support & global spare parts network. Reliable partners for your machinery needs.

Shrink FAQ

Our Technology Advantage

Unbreakable Film Strength
Produce superior stretch film with exceptional puncture and tear resistance. Our machines ensure high pre-stretch force, securing your goods for safe transit and reducing costly damage claims.

Dramatic Energy Savings
Our advanced servo systems and optimized design drastically cut your power consumption. Lower your operational costs significantly and improve your profit margin on every roll you produce.

Effortless High-Speed Operation
Achieve maximum output with minimal effort. Enjoy user-friendly controls, quick roll changes, and stable production lines for unparalleled efficiency and reduced downtime.
