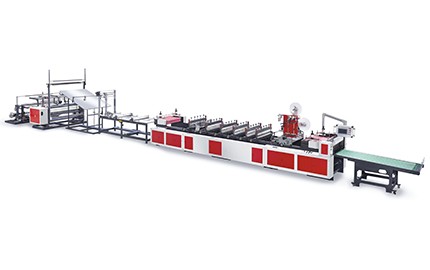

RK- FZ- B Kraft Envelope Air Bubble Bag Making Machine

RK- FZ- B Kraft Envelope Air Bubble Bag Making Machine is able to finish printing, compounding materials, folding and coating into one line.It is in a high production speed, nice appearance, good shockproof effect with stable performance.
Performance and characteristics



The Machine sets Light, electric and gas system in an international professional unit. It is in a high production speed, nice appearance, good shockproof effect with stable performance ,and which compliance with the safety standard of Western Countries. Even more importantly, the machine fills in the defects of inaccurate sealing and cutting, incorrect position of bag mouth, broken bubble ,less solid sealing and so on. It has been well received and been going to well introduced by customers. In addition, we owns several patents, we must and will investigate his legal responsibility according to the law if have similarity.







Usage



The Machine is professional to make laminated kraft paper bags, kraft paper compounded with bubble bags, aluminum compounded with bubble bags and so on.







Performance and characteristics



1.This machine adopt T aiwan touch screen computer display, PCL computer program which can be edited.



2.Auto meter counting & stop, could set number freely.



3.Computer fixed -length, printing color tracking.



4.Paper feeding with auto side - correction control.



5.The machine is able to finish printing, compounding materials, folding and coating into one line.



6.The machine adopts with heating compounded.







Main Technical Variables



Model

RK-FZ-B

Max. Material Width

1 600mm

Max. Air Bubble Roll Material V

1 250mm

Max. Material Diameter

Φ1200mm

Machine Speed

20-1 80pcs/min

Bag Length

80- 1000mm

Bag Width

1 00- 800mm

Bubble film thickness

> 200g

Voltage

380V Three phase four- line

Power

38kw

Machine Weight

4000kg

Machine Dimension

22000x2000x2500mm



*We will no longer inform you if there is any data change.

Optional equipment
